Press Filter Belt (Dewatering Belt)
Press filter belts (dewatering belts) for belt press filters in sludge dewatering, sand washing, juice squeezing and palm oil squeezing. Reinforced seams, custom lengths.
Press filter belts built for belt press filters — designed for long service life under high squeeze pressure.
The belts — woven constructions
601 (2/1 twill, 433 CFM), 608 (3/2 satin, 510 CFM), 613 (2/2 twill, 633 CFM), 626 for fine-particle duties, 656 PA nylon for pulp dewatering (outlasts competing nylon cloths by 2x), and the SP-P spiral family with filler yarns — also in PTFE-added non-stick, high-temperature PPS and hydrolysis-resistant grades.
Joints — reinforced for the press
Clipper splice for fast on-site fitting, double self-loop interlocked seams, or truly endless weaving — matched to the machine.
| Model | Warp yarn (mm) | Weft yarn (mm) | Warp/Weft dens. (/cm) | Weave | Air perm. (CFM) | Thickness (mm) | Weight (g/m²) | Tensile (N/cm) |
|---|---|---|---|---|---|---|---|---|
| 601 | PET 0.68 white | PET 0.9 white | 16 / 5 | 2/1 twill | 433 | 2.02 | 1476 | 1366 |
| 603 | PET 0.5 white | PET 0.8 white | 24 / 7.3 | 6/2 satin | 478 | 1.85 | 1310 | 1282 |
| 604 | PET 0.5 white | PET 0.7 white | 24 / 9 | 6/2 satin | 341 | 1.80 | 1280 | 1306 |
| 608 | PET 0.65 white | PET 1.0 red | 18 / 5.5 | 3/2 satin | 510 | 2.23 | 1588 | 1786 |
| 613 | PET 0.7 white | PET 0.9 white | 16 / 4.5 | 2/2 twill | 633 | 2.20 | 1405 | 1604 |
| 626 | PET 0.5 white | PET 1.0 red | 24 / 6.7 | 6/2 satin | 457 | 2.15 | 1657 | 1370 |
| 701 | PA 0.5 | PA 0.95 | 25 / 6.5 | 3/2 satin | 360 | 2.05 | 1428 | 1356 |
Applications
- Municipal and industrial sludge dewatering belt presses
- Sand washing and aggregate plants
- Fruit juice squeezing and palm oil squeezing presses
Related products: Spiral Fabric · Press Filter Fabric · Vacuum Filter Fabric.
| Material | polyester (PET) monofilament |
| Seam | reinforced pin seam (stainless steel clipper on request) |
| Permeability range | wide selection by dewatering stage |
| Edges | sealed, welded or reinforced |
| Widths and lengths | custom |
| OEM/ODM | available |
Frequently Asked Questions
What is a dewatering belt?

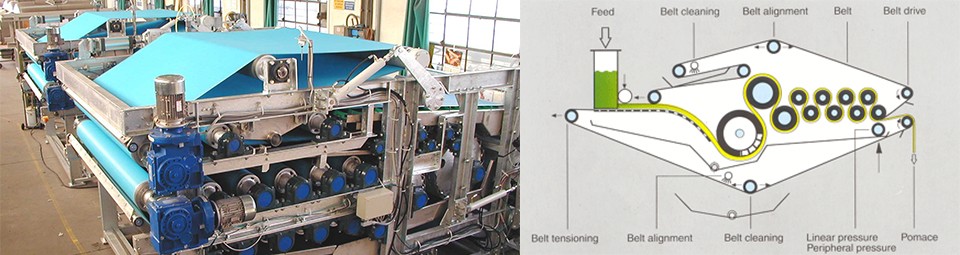

A dewatering belt is the press filter belt that runs on a belt press filter: it drains water through its openings while withstanding high squeeze pressure between the press rollers.
Which belt permeability do I need?
Coarser, more permeable belts suit the gravity drainage zone; tighter weaves suit the high-pressure pressing zone. We select permeability per press zone and material.
Are reinforced seams available?
Yes — reinforced seams extend belt life under high squeeze pressure; stainless steel clipper seams are available on request.
Spiral or woven belt — which one?
Spiral belts (with filler yarns) resist heavy squeeze and release cakes well; woven belts give a smoother surface and finer retention. See our spiral press filter belt page for the spiral option.
Do you supply food-juice pressing belts?
Yes — food-grade PET weaves for juice and fruit squeezing presses, with endless or pin seams.
