Dryer Fabric
Anti-static dryer fabrics and dryer belts for board forming, paper drying and food drying machines. Anti-static, anti-hydrolysis and heat-resistant constructions with strong warp loop seams.

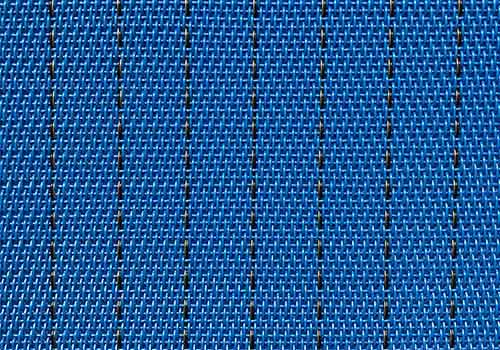

Anti-static dryer fabrics eliminate static build-up on board forming machines, food drying machines and belt drying machines.
Four families on one page
Family 1 anti-static dryer belts (wool scouring and wood panel forming on Dieffenbacher-type lines — our flagship line), Family 2 spiral fabrics with and without filler yarns for open high-airflow drying, Family 3 square mesh belts for drying, conveying and screening, and Family 4 flat-yarn dryer fabrics for paper and nonwoven lines.
- Anti-static belts — wool drying, MDF/OSB forming and pre-press (Dieffenbacher-type)
- Spiral fabrics — with or without filler yarns, up to ~1000 CFM
- Square mesh — food, wood chip and biomass drying
- Flat-yarn fabrics — paper dryer sections, nonwoven spunlaid
| Model | Warp yarn (mm) | Weft yarn (mm) | Warp/Weft dens. (/cm) | Weave | Air perm. (CFM) | Thickness (mm) | Weight (g/m²) |
|---|---|---|---|---|---|---|---|
| 12804TK | PET 0.8/0.65/0.45 anti-static | PET 0.8 | 12.7 / 4.5 | Anti-static | 528 | 2.19 | 1460 |
| 16804K | PET 0.68/0.64 anti-static | PET 0.8 | 16.6 / 6.9 | Anti-static | 282 | 1.84 | 1420 |
| 611 | PET 0.8 × 0.42 red | PET 0.8 white | 11 / 5.5 | 2/2 twill | 799 | 1.25 | 896 |
| 624 | PET 0.5 white | PET 0.5 white | 24 / 12 | Double layer | 781 | 2.26 | 1212 |
| 625A | PET 0.38 × 0.58 red | PET 0.5 red | 20 / 11.7 | Satin | 427 | 1.73 | 1050 |
Applications
- Wood panel board forming and MDF/PB drying lines
- Wool scouring dryers
- Paper machines — drying section
- Food drying machines and belt drying machines
- Square mesh drying, conveying and screening
Related products: Forming Fabric · Spiral Fabric.
| Constructions | anti-static, anti-hydrolysis, heat-resistant |
| Seam | strong warp loop seam, pin seam or endless |
| Custom widths for every dryer width | |
| Food-grade options available | |
| OEM/ODM | available |
Frequently Asked Questions
Why choose an anti-static dryer fabric?
Anti-static yarns (carbon filament) drain the static charges that build up on high-speed dryers — preventing dust attraction, sheet wrap-ups and shocks to crews, especially on board forming and food drying machines.
What is air permeability (CFM) and why does it matter?
CFM (cubic feet per minute per square foot) measures how easily drying air passes through the fabric. Too open and the sheet loses contact; too tight and the fan works against the fabric. We select CFM per dryer zone, product and temperature.
What seam options are available?
Strong warp loop seams as standard — the seam is usually the first failure point on a dryer fabric — plus pin seams and endless seaming for smooth high-speed running.
Can dryer fabrics be used for food drying?
Yes. We supply food-grade anti-static dryer fabrics for food belt dryers, with food-contact compliant materials.
Do you supply fabrics for wood panel drying?
Yes — belt dryer fabrics for particleboard and OSB lines are a core application. See also our spiral dryer fabrics for open, high-CFM duties.
How do I keep dryer fabrics clean?
Periodic cleaning keeps CFM stable: clogged fabrics raise steam use. Ask us for a cleaning and conditioning schedule for your duty.
What is the silicone-coated (4106S) version for?
4106S coats a single-layer dryer fabric with high-temperature silicone — used in MDF production where the belt must release resin-laden product cleanly. See the video above.
What are the joints made of?
Spiral joints on our anti-static belts are made of PEEK — heat-resistant, hydrolysis-resistant and chemically inert — so the joint outlives the fabric. Steel clipper and endless joints are available on request.
Dryer fabric, dryer belt or dryer conveyor fabric — what is the difference?
The three names cover the same product family. “Dryer fabric” is the paper-industry term; “dryer belt” and “dryer conveyor belt” emphasize the conveying duty on board, food and wool lines. We map every enquiry to the right construction for the machine.
What opening sizes do your square mesh belts come in?
More than 20 heat-set square openings from 200 µm × 200 µm up to 4 mm × 4 mm, woven from polyester monofilament and heat-set for low shrinkage at working temperatures to 180 °C — supplied flat and stable in seamless widths up to 6 m.
